S1

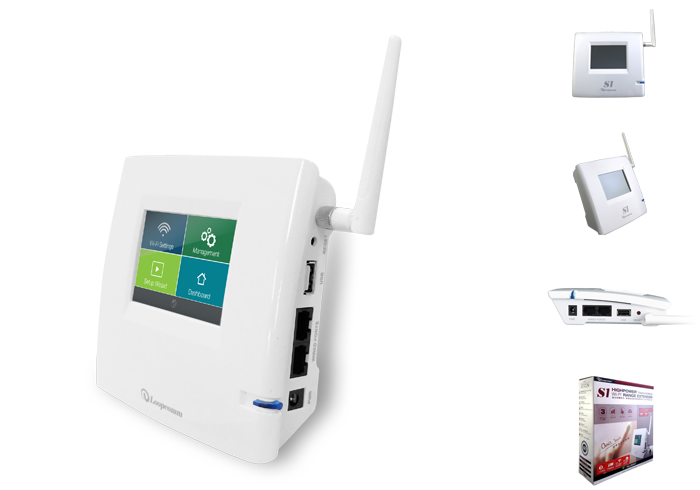

High Power Touch Screen Wi-Fi Range Extender
.png)
| Standard： | IEEE 802.11 b/g/n |
| Chipset： | Realtek RTL8197DN |
| Frequency Band： | 2.400GHz ~ 2.484GHz |
| Data Rate： | 802.11b：11,5.5,2 and 1 Mbps with auto-rate fall back 802.11g：54,48,36,24,18,12,9&6Mbps 802.11n：(20MHz)：up to 144Mbps 802.11n：(40MHz)：up to 300Mbps |
| Security： | 64/128 bit WEP WPA(TKIP with IEEE 802.1x) WPA2(AES with IEEE 802.1x) WPA Mixed |
| Media Access Control： | CSMA/CA |
| Output Power(Typical)： | 802.11b: up to 26 ± 1 dBm 802.11g: up to 23 ± 1 dBm 802.11n: up to 21 ± 1 dBm |
| Sensitivity： | -93dBm @ 802.11b -89dBm @ 802.11g -86dBm @ 802.11n |
| I/O ports： | One SMA Antenna connector Two RJ-45 LAN port (10/100) One USB 2.0(Storage sharing function) Reset to default button |
| Antenna： | One Ext 2dBi Antenna (SMA connectors) One Chip Antenna on board |
| Dimension(mm)： | 135(L) x145(W) x36(H) |
| Storage Humidity： | 10% ~ 90% (Non-condensing) |
| Operation Temperature： | 0°C ~ 60°C |
| Power requirement： | 12V DC |
